NEW!

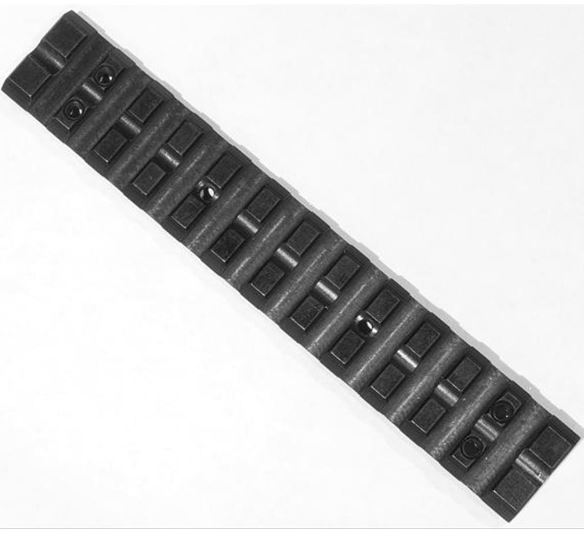

For the Henry AR7 U.S. Survival rifle. The dovetail rail adapter is cut with Picatinny slots for use with Picatinny and Weaver style rings, red dot, reflex sites and other accessories. The slots allow you to locate the optics exactly where you want them to be.
Factory sights are still usable with the rail installed.
NO Drilling & Tapping required

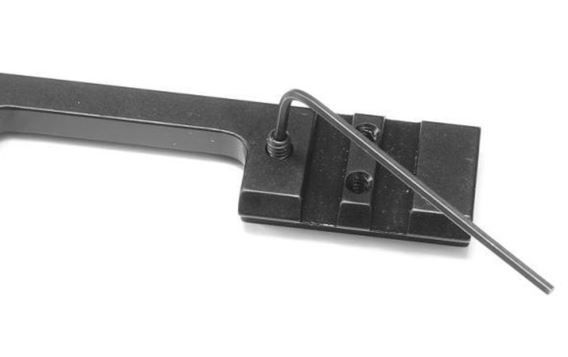

Held in place with 6(supplied) 1/16" Allen drive set screws
Recommended Tools:
1/16" Allen wrench
Purple LocTite(222)
Inch pound torque wrench
The part number or white mark on the bottom of the rail should be placed forward toward the muzzle. Minor fitting may be required5MOA built in to the mount to allow most scopes to be "zeroed" anywhere from 25-160yrds using 22LR target or subsonic ammunition
Made from USA 6061 T3 Billet Aircraft Aluminum
Height - approximately .21"
Weight 2oz
Length: 4.625
| Type | Scope Mount |
| For Gun Type | Rifle |
| Gun Brand | Henry |
