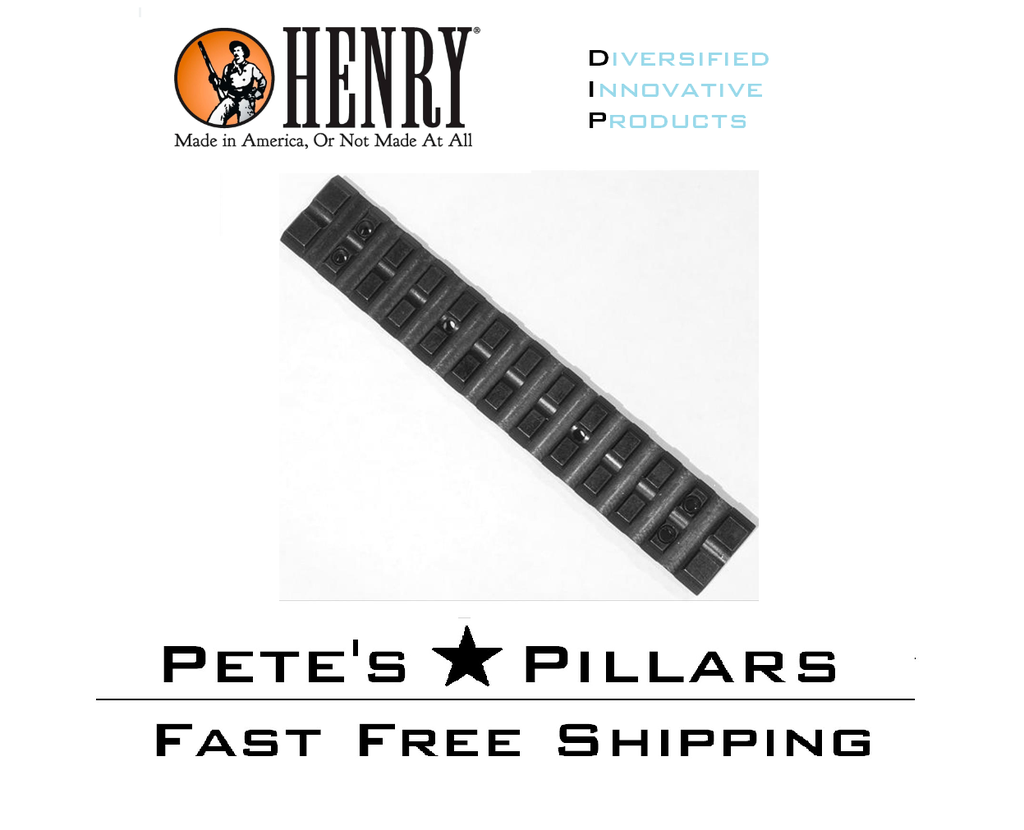

The DIP 3/8" dovetail to Picatinny rail adapter is a well-designed mounting solution for Henry rimfire lever-action rifles, offering a clean, non-permanent way to add modern optics while preserving the character of the rifle. Designed to fit all Henry H001 models and the H003 .22 LR action, this rail allows the use of Picatinny and Weaver-style rings and accessories without drilling or tapping.
Diversified Innovative Products (DIP) is known for producing practical, well-made firearm accessories, and this rail reflects that reputation. Machined from aluminum and finished with a durable black hardcoat anodizing, it provides a low-glare matte finish that blends well with factory Henry finishes and holds up to regular use.
The Picatinny slot layout allows you to place your optic exactly where it works best for your setup, whether that’s a red dot or a compact scope. The rail is also designed so factory iron sights remain usable after installation, giving you the flexibility to run irons, optics, or both.
At Pete’s Pillars, we only carry products we trust and would run ourselves. As an authorized DIP dealer, we’re proud to offer this rail as a proven solution for Henry owners who want dependable fit and function without permanently modifying their rifle.
Installation is straightforward and requires no drilling or tapping. The rail mounts directly to the factory 3/8" dovetail and is secured using six included 1/16" Allen drive set screws. The part number or white orientation mark on the underside of the rail must face forward toward the muzzle. Due to normal variations in Henry’s factory finish—sometimes thicker or uneven—minor fitting may be required.
Installation should be performed by a competent gunsmith or an individual with proper tools and experience.
Fitment
- Fits ALL Henry H001 rimfire lever-action rifles
- Fits Henry H003 .22 LR action
- Factory iron sights remain usable
- Minor fitting may be required due to factory finish variations
Installation Notes
- No drilling or tapping required
- Mounts directly to factory 3/8" dovetail
- Six set screws included
- Orientation mark faces forward toward the muzzle
- No printed instructions included
Recommended Tools
- 1/16" Allen wrench
- Inch-pound torque wrench
- Purple Loctite 222 (recommended, not included)
Tip: To help prevent marring the rifle’s finish, a small piece of brass or copper can be placed in the set screw hole after positioning the rail and before tightening the screws.
Key Features
- Manufactured in the USA by DIP (Diversified Innovative Products)
- Sold by Pete’s Pillars, an authorized DIP dealer
- Machined aluminum construction
- Black hardcoat anodized matte finish
- 3/8" dovetail to Picatinny rail adapter
- Accepts Picatinny and Weaver-style optics and accessories
- Allows precise optic positioning
- Retains use of factory iron sights
- No drilling or tapping required
- Fits Henry H001 and H003 .22 LR rifles
| Brand | DIP |
| Type | Scope Mount |
| For Gun Type | Rifle |
| Gun Brand | Henry |
