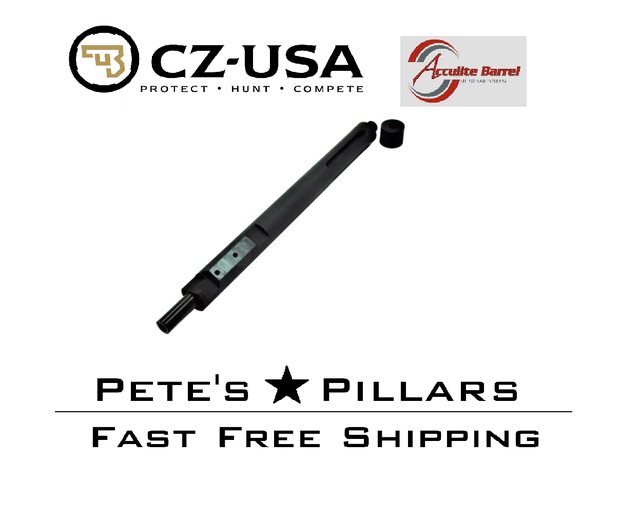

22 Charger Takedown LR (long rifle) WF (with flutes), TH (.500 x 28 TPI threaded w/cap) anodized .920 Barrel
Popular length when adding a silencer on a BATFE licensed Short Barrel Rifle (SBR). Locking Mechanism not included.
All NFA laws apply., You are responsible for knowing you local laws.
Barrel Length: 6" 10" & 12"... Charger Takedown barrel with threaded muzzle end and protective cap. Rifle liner runs the full length in barrels.
Standard Features: Barrel flutes (long one on top, 2 smaller ones on the sides and one on the bottom).
Optional barrel with no flutes.
Diameter: .920 Bull Barrel Style
Shank Size: .001 Oversized (may require minor hand fitting)
Chamber: .22 LR Bentz Chamber - can use standard or match grade ammunition. Hyper-velocity ammo, such as CCI Stingers are not recommended.
Liner: 4140 Steel - Button rifled
.050 Thickness on LR & WMR (Magnum) liner, 6 groove
Rate of Twist: 1:16 - 22LR and WMR
1:9 - 22LR Sub-Sonic (40, 50, 60 grain ammo / accuracy range 25-50 yds.)
Caliber: . 22 Long Rifle
Weight: Approximately 1 oz. per inch per length of the barrel
| Caliber | 22 LONG RIFLE |
