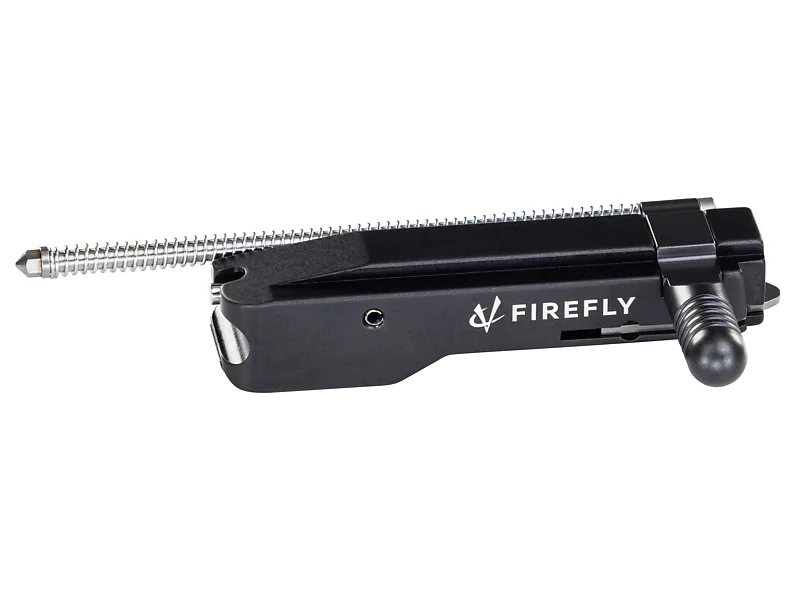

Volquartsen Firefly Bolt 2.0 for Ruger 10/22 – VF10FY2
The Volquartsen Firefly Bolt 2.0 VF10FY2 is a lightweight aluminum bolt assembly designed specifically to help Ruger 10/22 rifles cycle low-velocity and subsonic .22 LR ammunition that can struggle to operate a conventional factory-weight bolt.
CNC-machined from aluminum and Type III hard anodized, the Firefly 2.0 is engineered around ammunition ranging from approximately CCI Quiet 710 fps loads up through subsonic .22 LR around 1050 fps. :chatgpt-content-reference{index="1"}
For shooters building a quiet 10/22, suppressed rimfire, backyard target rifle, or dedicated low-velocity setup, the Firefly addresses the core problem directly: reducing reciprocating bolt mass so lower-energy ammunition has a better chance of cycling the action.
Build Out Your Ruger 10/22
Designed for Subsonic .22 LR
The standard Ruger 10/22 operates by simple blowback, which means the energy generated by the cartridge must move the bolt far enough rearward to extract, eject, reset the action, and feed the next round.
Very low-velocity ammunition generates less energy than standard or high-velocity .22 LR. The lightweight Firefly bolt reduces the mass that ammunition has to move, allowing the action to function with loads that may not reliably cycle a conventional bolt.
Volquartsen specifically designed the Firefly around low-velocity ammunition ranging from CCI Quiet loads rated at 710 fps through subsonic ammunition around 1050 fps. :chatgpt-content-reference{index="2"}
Ideal for Quiet & Suppressed 10/22 Builds
The Firefly Bolt 2.0 is especially useful for shooters intentionally building a Ruger 10/22 around reduced-velocity ammunition.
Subsonic ammunition avoids the supersonic crack generated when a projectile exceeds the speed of sound, which makes it a natural choice for suppressed rifles and other noise-conscious rimfire setups.
The Firefly does not require a suppressor to function, however. Its purpose is simply to help the rifle operate with lower-powered ammunition whether the muzzle is suppressed or not.
Lightweight CNC-Machined Aluminum Bolt
The Firefly 2.0 is CNC-machined from aluminum rather than using the heavier construction associated with a conventional 10/22 bolt.
That reduction in reciprocating mass is the core of the Firefly design.
The bolt receives a Type III hard-anodized finish for improved surface durability while maintaining the low mass required for reliable operation with reduced-power ammunition. :chatgpt-content-reference{index="3"}
Two Recoil Springs Included
The Firefly Bolt 2.0 includes two recoil springs: a reduced-power spring and a standard spring.
The reduced-power spring is installed from the factory, while the second spring allows the shooter to tune the action around the ammunition and rifle configuration being used.
That adjustability is important because rimfire ammunition varies considerably in velocity, bullet weight, pressure, lubrication, and consistency.
Precision-Ground Hardened A2 Recoil Rod
Volquartsen includes a precision-ground hardened A2 recoil rod with the Firefly assembly.
The rod is manufactured to very tight straightness tolerances to promote smooth bolt movement and reduce unnecessary friction as the action cycles. :chatgpt-content-reference{index="4"}
The spring can also be changed easily, allowing the shooter to tune the recoil system without replacing the entire assembly.
Volquartsen Firing Pin & ExactEdge Extractor
The Firefly Bolt 2.0 includes Volquartsen's firing pin and ExactEdge extractor. Volquartsen confirms these components are included with the current Firefly and Competition Bolt 2.0 assemblies. :chatgpt-content-reference{index="5"}
The extractor provides a robust engagement point on the cartridge rim while the firing-pin system is designed around consistent rimfire ignition.
The complete assembly therefore replaces more than simply the bolt body itself.
Hardened Steel Hammer Contact Surface
Although the Firefly uses a lightweight aluminum bolt body, Volquartsen incorporates a hardened steel lug at the hammer contact area.
This protects the aluminum bolt from repeated hammer impact and allows the design to combine low reciprocating mass with a durable wear surface. :chatgpt-content-reference{index="6"}
Why a Standard 10/22 Can Struggle with CCI Quiet
Loads such as CCI Quiet operate far below the velocity of conventional high-velocity .22 LR ammunition.
That reduced energy can mean the factory bolt begins moving rearward but does not travel far enough to complete the entire operating cycle.
The Firefly changes the mechanical equation by reducing bolt mass and allowing the recoil spring to be tuned to the ammunition.
Individual rifles and ammunition lots still vary, but the system is specifically engineered around this low-energy operating range rather than asking a factory-weight bolt to perform outside its normal envelope.
Factory Ruger & Volquartsen Receiver Compatibility
Volquartsen states that the Firefly Bolt 2.0 is designed for use with factory Ruger 10/22 receivers and Volquartsen aftermarket receivers. :chatgpt-content-reference{index="7"}
Compatibility with other aftermarket 10/22 receivers is not guaranteed, so shooters using a third-party receiver should verify fitment before ordering.
Black Bolt Knob Configuration
The VF10FY2 configuration includes the black-knob version of the Firefly Bolt 2.0 assembly.
The black hardware gives the assembly a clean appearance that works naturally with factory Ruger receivers as well as custom black or contrasting 10/22 builds.
A Dedicated Solution Rather than a General-Purpose Bolt
The Firefly Bolt 2.0 is best understood as a specialized component.
If your 10/22 already cycles the ammunition you want to shoot reliably, there may be little reason to replace a standard bolt solely for the sake of replacement.
The Firefly becomes valuable when the goal is specifically to run very low-velocity or subsonic ammunition in a semi-automatic 10/22 and the conventional bolt system does not have enough operating energy to cycle consistently.
Product Details
- Manufacturer: Volquartsen
- Part Number: VF10FY2
- Product: Firefly Bolt 2.0 Assembly
- Platform: Ruger 10/22
- Caliber: .22 LR
- Primary Use: Subsonic / Low-Velocity Ammunition
- Recommended Velocity Range: Approximately 710–1050 fps
- Bolt Material: CNC-Machined Aluminum
- Finish: Type III Hard Anodized
- Recoil Rod: Precision-Ground Hardened A2 Steel
- Recoil Springs: Reduced-Power and Standard Spring Included
- Firing Pin: Volquartsen Firing Pin Included
- Extractor: Volquartsen ExactEdge Extractor Included
- Hammer Contact: Hardened Steel Wear Lug
- Knob Color: Black
- Receiver Compatibility: Factory Ruger and Volquartsen 10/22 Receivers
- Made in USA: Yes
Designed for ammunition under approximately 1050 fps. Actual cycling performance can vary with ammunition, receiver tolerances, barrel configuration, suppressor use, magazine condition, cleanliness, and spring selection.
Compatibility with non-Ruger and non-Volquartsen aftermarket receivers is not guaranteed.
