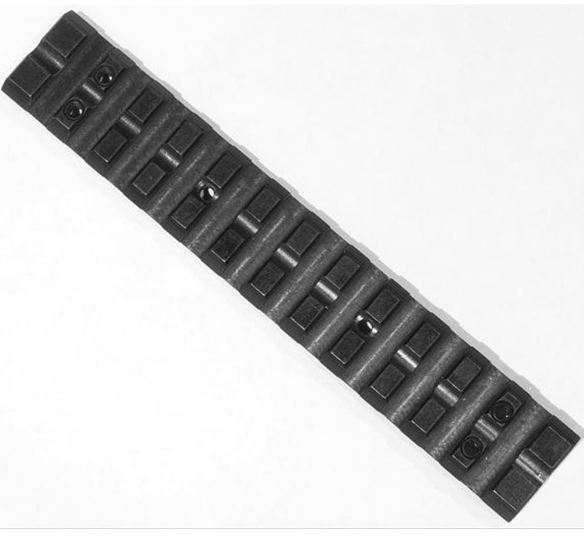

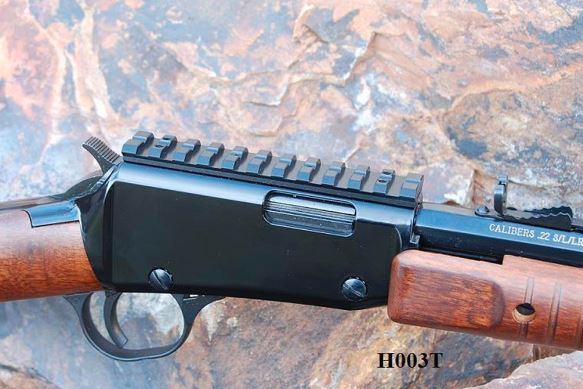

The Henry H001 & H003 3/8" dovetail rail adapter is cut with Picatinny slots for use with Picatinny and Weaver style rings and accessories. The slots allow you to locate the optics exactly where you want them to be. Fits ALL model H001 lever action Henry and the H003 pump action 22LR rifles Factory sights are still usable with the rail installed.

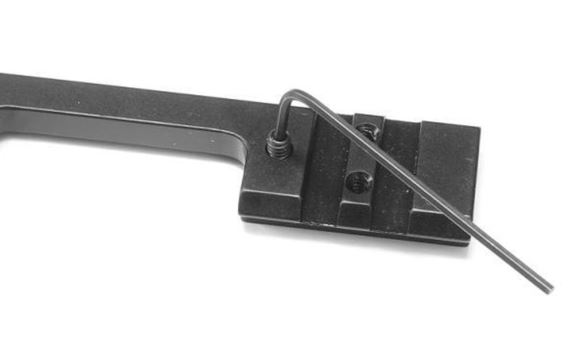

NO Drilling & Tapping required held in place with 6(supplied) 1/16" Allen drive set screws
Recommended Tools:
1/16" Allen wrench
Purple LocTite(222)
Inch pound torque wrench
The part number or white mark on the bottom of the rail should be placed forward toward the muzzle. Minor fitting may be required
| Brand | DIP |
| Type | Scope Mount |
| For Gun Type | Rifle |
| Gun Brand | Henry |
