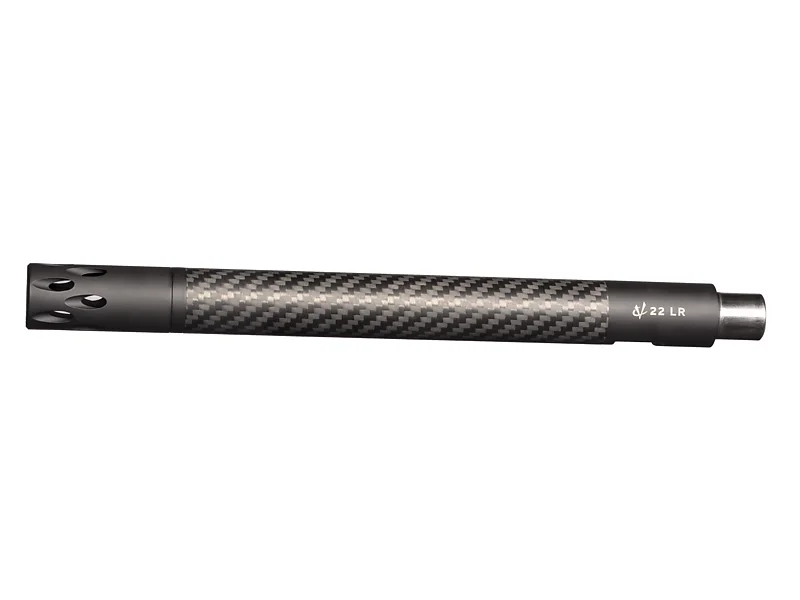

Volquartsen VF-9 Lightweight Carbon Fiber Barrel with Forward Blow Compensator – Ruger 22 Charger
The Volquartsen VF9-0002 Lightweight Carbon Fiber Barrel combines premium barrel construction with an included Forward Blow Compensator in a compact, lightweight configuration designed for the Ruger 22 Charger.
This model features a 9-inch barrel, woven carbon fiber sleeve, stainless steel construction, 1/2-28 threaded muzzle, and black anodized aluminum Forward Blow Compensator.
Weighing approximately 13 ounces, the VF-9 provides the benefits of lightweight barrel construction while offering a complete compensated muzzle configuration from Volquartsen.
Lightweight Carbon Fiber Barrel Construction
Volquartsen's VF-9 barrel combines a precision stainless steel barrel with a rigid carbon fiber exterior sleeve, providing a substantial barrel profile without the weight associated with conventional heavy steel bull barrels.
The carbon fiber design helps maintain structural rigidity while reducing weight, making the VF-9 an attractive option for compact rimfire pistols where balance and handling are important considerations.
At approximately 13 ounces with its compensator configuration, the VF9-0002 offers a lightweight alternative to traditional solid steel barrel designs.
Forward Blow Compensator Included
The distinguishing feature of the VF9-0002 is its included Volquartsen Forward Blow Compensator, finished in black anodized aluminum.
The compensator uses forward-angled ports designed to redirect muzzle gases toward the front of the firearm rather than primarily toward the sides.
This design is intended to help manage muzzle movement while directing more muzzle blast away from the shooter's immediate position.
Unlike the standard threaded Volquartsen VF9-0001 Lightweight Charger Barrel, the VF9-0002 includes the Forward Blow Compensator.
Note: A Forward Blow Compensator is not a sound suppressor. Appropriate hearing protection remains necessary.
9-Inch Barrel with 10.5-Inch Overall Length
The VF9-0002 features a 9-inch barrel with a 10.5-inch overall length including the compensator, according to Volquartsen's manufacturer specifications.
The barrel features 1/2-28 muzzle threads and is chambered for .22 Long Rifle ammunition.
With a 1:16 twist rate, lightweight carbon fiber construction, and included compensator, this configuration offers a distinctive alternative within Volquartsen's specialty Charger barrel family.
Volquartsen vs. KIDD Ruger 22 Charger Barrels
When comparing Volquartsen and KIDD Ruger 10/22 or 22 Charger barrels, important considerations include barrel construction, overall weight, length, muzzle configuration, and firearm compatibility.
Both manufacturers are established names in premium rimfire components, although their barrel offerings and available configurations differ.
The Volquartsen VF9-0002 combines a 9-inch stainless steel and carbon fiber barrel with an included Forward Blow Compensator, providing a complete lightweight compensated configuration.
For shooters researching KIDD barrel alternatives for the Ruger 22 Charger, the Volquartsen VF-9 offers a distinctive combination of composite construction, compact dimensions, and an integrated package of premium components.
Ruger 22 Charger Compatibility
The VF9-0002 is designed for compatible standard Ruger 22 Charger pistols chambered in .22 Long Rifle.
This configuration is not intended for Ruger 22 Charger Takedown models, which use a different barrel attachment system.
Compatibility with specialized aftermarket receivers and stock or chassis barrel channels should be confirmed before purchase.
Important Legal Notice: This 9-inch barrel is intended for lawful pistol configurations. Installing a barrel of this length on a firearm originally configured as a rifle may create a firearm subject to National Firearms Act requirements or other federal and state restrictions. Purchasers are responsible for ensuring their intended configuration complies with applicable laws.
Features & Benefits
- Ruger 22 Charger Application: Designed for compatible fixed-barrel Charger pistols.
- 9" Barrel Length: Compact VF-9 configuration.
- 10.5" Overall Length: Includes the Forward Blow Compensator.
- Approximately 13 oz: Lightweight manufacturer-specified configuration.
- Carbon Fiber Exterior: Rigid lightweight composite sleeve.
- Stainless Steel Barrel: Premium Volquartsen construction.
- Forward Blow Compensator: Included.
- Black Anodized Aluminum: Compensator material and finish.
- 1/2-28 Muzzle Threads: Factory-threaded configuration.
- 1:16 Twist Rate: Chambered for .22 LR.
- Made in USA: Manufactured by Volquartsen Firearms.
Explore Other Volquartsen Ruger Charger Barrels
Pete's Pillars carries additional Volquartsen Charger barrel configurations for shooters who prefer different lengths or muzzle features.
Recommended Volquartsen & Pete's Pillars Accessories
Explore additional Volquartsen components and Pete's Pillars replacement hardware for compatible Ruger rimfire firearms.
Compatibility Note: Select accessories for the specific Ruger Charger configuration. Standard rifle stocks, MDT rifle chassis systems, and Takedown-specific components should not be assumed compatible.
Product Specifications
- Manufacturer: Volquartsen Firearms
- Model: VF-9 Lightweight Barrel with Forward Blow Compensator
- Part Number: VF9-0002
- UPC: 810162019471
- Platform: Ruger 22 Charger, Compatible Fixed-Barrel Models
- Caliber: .22 Long Rifle
- Barrel Length: 9"
- Overall Length with Compensator: 10.5"
- Approximate Weight: 13 oz
- Twist Rate: 1:16
- Barrel Construction: Stainless Steel with Carbon Fiber Sleeve
- Muzzle Threads: 1/2-28 TPI
- Compensator: Volquartsen Forward Blow Compensator, Included
- Compensator Material: Aluminum
- Compensator Finish: Black Anodized
- Takedown Compatible: No
- Country of Manufacture: USA
The Pete's Pillars Difference
Pete's Pillars is an authorized Volquartsen dealer, offering genuine premium rimfire barrels and accessories alongside our own American-made replacement components.
From lightweight specialty Charger barrels to precision bolt components and trigger upgrades, we carry quality products from established manufacturers.
Genuine Volquartsen products. Real parts. Made by real people.
